GO SERIES 900
SEMI AUTOMATIC ORBITAL WRAPPING MACHINE
Product Angle

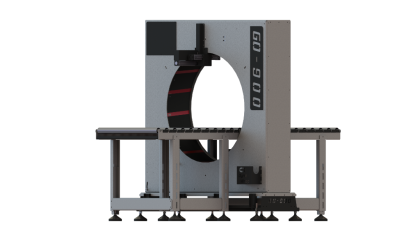

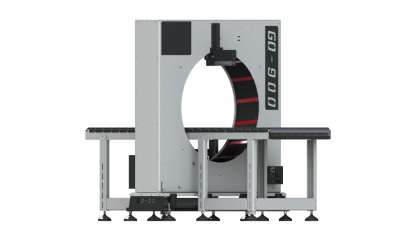

Go 900 – Semi-Automatic Orbital Wrapping Machine
Bigger Capacity. More Flexibility. Same Dynawrap Simplicity.
Meet the Dynawrap Go 900 — a semi-automatic orbital wrapping machine
designed for workshops that need more wrapping space without giving up
compactness or ease of use.
It’s the ideal choice for furniture, kitchen, and wood product manufacturers ready
to beyond manual packaging.
The Go 900 delivers higher speed, greater consistency, and cleaner wrapping —
all with a single operator.
With its 920 mm net passing diameter, the Go 900 easily handles large panels, doors,
furniture parts, profiles, and boxed items,
while keeping the same smart and practical concept that defines the
Dynawrap Go Series.
Key Features
- 920 mm ring diameter – perfect for large panels, cabinet doors, and long furniture components.
- Pedal-controlled system – keeps both hands free for safe, easy handling.
- Adjustable film tension and rotation speed – ensures optimal wrapping for every shape and size.
- Intuitive control panel – ready to use in minutes.
- Optional cutting & clamping unit – semi-automatic film cutting at the end of each cycle.
- Heavy-duty steel frame – built for continuous industrial use.
- Compact design – fits easily into existing lines and tight workshop areas.
- One-person operation – saves time, space, and labour costs.
- Ideal for doors, panels, frames, mouldings, aluminium profiles, and similar products
Why Choose Go 900?
- Up to 80% faster than manual wrapping
- Short payback time – fast return on investment
- Consistent, professional wrapping quality
- Operated by one person – no need for extra staff
- Low maintenance and durable components
The Go 900 bridges the gap between compact manual systems and full automatic
lines.
It brings professional packaging quality, industrial performance, and user-friendly control to any production floor exactly what you expect from the Dynawrap Go Series.
Product Features
Technical Specifications
Specification | Go 900 (Dual Cartridge) |
Ring Inner Diameter | 920 mm |
Maximum Product Width | 870 mm |
Maximum Product Height | 630 mm |
Film Reel Width | 125 / 170 mm |
Film Reel Inner Diameter | 38 – 76 mm |
Film Reel Outer Diameter | 200 mm |
Power Supply | 230 V / 1 Ph / 50–60 Hz or 110 V / 1 Ph / 60 Hz |
Installed Power | 0.75 kW |
Rotation Speed | Adjustable – up to 120 RPM |
Machine Dimensions (L×W×H) | 1480 × 2150 × 1680 mm |
Machine Weight | ~380 kg |
Main Parameter
Optional Accessories
- Infeed & Outfeed conveyors (roller type)
- Cutting and Clamping unit (semi-automatic film cutting)
- Support rollers and adjustable stands
- Bubble-wrap and stretch film combo wrapping
- Compact design for easy transport and installation
Typical Applications
- Kitchen cabinet production
- Furniture and panel manufacturing
- Wooden and MDF door factories
- PVC and aluminium profile wrapping
- DIY and moulding product packaging
